: : PRODUCTS : :

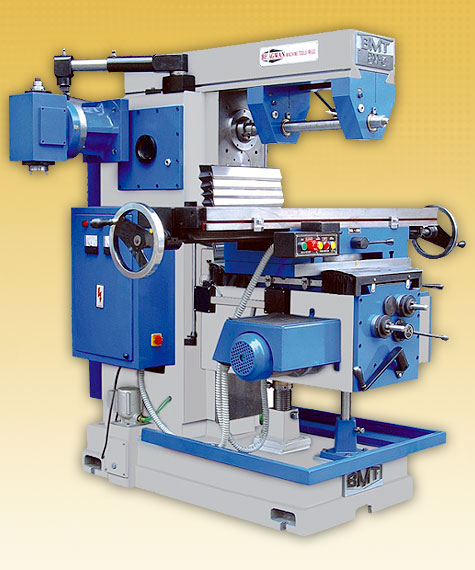

All Geared Horizontal Milling Machine
Salient Features
All geared Universal Milling Machines, with 12 speeds head, 18 feeds in X,Y,Z, movement,
stell bellows, coolant pump, lubrication manual pummp, single lever drive & cross feed.

Model No. BM2 GH[AFR]E BM3 GV[AFR]E BM4 GV[AFR]E
Table: MM MM MM
Working Surface 1270 x 300 1400 x 330 1600 x 330
T-Slot No./Size 3.16 3.16 3.16
T-Slot Centre 70 80 80
Distance from Spindle Max/Min 450 510 600
Logintudinal Travel X 700 800 1000
Cross Travel 215 260 340
Vertical Travel 450 510 600
Feed:
Number of Feeds 18 18 18
Range of Longitudinal Feed/min. 23 - 420 23 - 420 23 - 420
Range of Cross Feed/min. 23 - 420 23 - 420 23 - 420
Range of Vertical Feed/min. 3 - 70 3 - 70 3 - 70
Number of Rapid Feed 1 1 1
Rapid Long & Cross/min. 1050 1050 1050
Rapid Vertical/min. 175 175 175
Spindle:
Number of spindle speeds 12 12 12
Range of Spindle Speeds 40 - 12 RPM 40 - 12 RPM 40 - 12 RPM
Spindle Taper ISO 40 ISO 40 ISO 40
Arbor Diameter 25.4s 27 27
Electrical:
Main/Feed/Coolant Motors 3/2/0.1 H.P 5/2/0.1 H.P 7.5/3/0.1 H.P
Distance Spindle:
Vertical Movement to Quill Feed 75 100 100
Centre to column Face 370 406 406
Shipping Dimensions:
Length x Width x Height [cm] 173 x 137 x 200 182 x 160 x 218 198 x 168 x 234
Net Weight [kg.] 2100 3200 3700
Gross Weight [kg.] 2600 3700 4300
