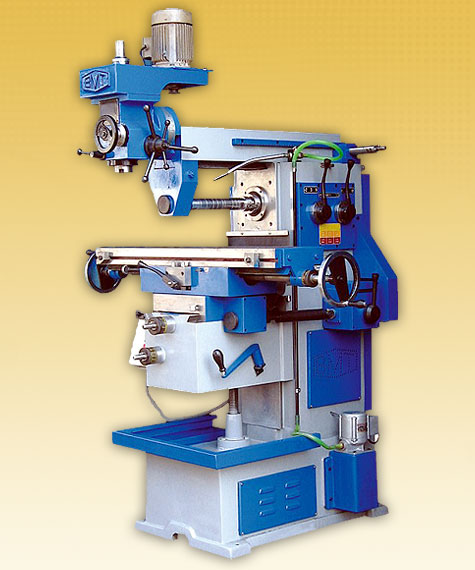

| Gear head Horizontal Universal Milling Machine on ram vertical head |
| |
 |
| Model No. |
Number 1 |
Number 11/2 |
| Table: |
MM |
| Working Surface |
1050 x 240 |
1140 x 255 |
| T-Slot No./Size |
3 x 14 |
3 x 14 |
| Swivel |
±45° |
±45° |
| Longitudinal Travel X |
550 |
600 |
| Cross Travel Y |
170 |
230 |
| Cross Travel Z |
340 |
410 |
| Spindle: |
| Number of spindle speeds |
9 |
9 |
| Range of Spindle Speeds |
58 - 768 |
58 - 768 |
| Spindle Taper |
ISO 40 |
ISO 40 |
| Arbor Diameter |
25.4 |
25.4 |
| Feed: |
| Number of Feeds |
3 |
3 |
| Electrical: |
| Main motor 1440 RPM |
2 H.P. |
2 H.P. |
| Coolant Pump Motor |
0.1 H.P. |
0.1 H.P. |
| Shipping Dimensions: |
| Length x Width x Height [cm] |
132 x 117 x 170 |
140 x 125 x 195 |
| Net Weight [kg.] |
1000 |
1250 |
| Gross Weight [kg.] |
1300 |
1600 |
| |
Optional Accessories:
Vertical attachment head, Slotting attachment, Rack cutting attachment, Dividing head, Rotary table, Milling machine vice, Machine lamp. |
|
| |
   |
| |
|
